Quick Summary
When comparing RFID based gate control system options, property owners must evaluate key trade-offs between battery-free passive UHF tags and longer-range active transponders regarding read distance, response time, and maintenance. Smart Choice Gate Repair Long Beach highlights that reliable automated access relies on precise antenna zone calibration, proper shielding, and seamless relay integration with existing gate operators. After reading, property owners will understand how to select the ideal RFID architecture for their facility and schedule a professional consultation to ensure proper installation.
Overview of RFID-Based Gate Control System Design Considerations
When comparing RFID based gate control system options, key engineering and design priorities include recognition accuracy, response time, communication stability, and operating distance. In academic testing of automated gate access, UHF RFID setups demonstrate high recognition accuracy and low response times. As technicians at Smart Choice Gate RepairLong Beach observe, translating these results into practical deployments requires selecting appropriate tag and reader configurations, optimizing antenna alignment, and ensuring stable communication between system components.[2]
Factors such as physical layout, reader positioning, and signal propagation affect overall performance. Properly comparing RFID based gate control system options involves evaluating passive versus active technologies, managing antenna beam angles, and interfacing reader controllers with gate mechanisms.[3]
RFID Gate Control System Architecture
An RFID gate system identifies credentials using radio frequency communication to automate access control. A typical system comprises an RFID reader and antenna, physical credentials (such as windshield tags or active transponders), and an access controller that interfaces with the gate operator.[1]
Academic research on RFID middleware-based gate systems demonstrates that robust access control relies on structured Electronic Product Code (EPC) authentication, door state monitoring, accurate logging across entry points, and stable communication protocols between hardware components.[4]
Passive and Active RFID Technologies: Technical Distinctions
The primary technical distinction between passive and active RFID vehicle access systems lies in how tags are powered and communicate with the reader:
- Passive UHF Tags: These tags do not contain an internal battery. Instead, they harvest electromagnetic energy transmitted by the reader and modulate the backscattered signal to transmit their unique EPC. They provide a cost-effective, long-lifespan solution with a defined operating distance.
- Active Transponders: Active tags incorporate an internal power source (battery) to broadcast signals directly to the reader, allowing for greater operating distances and support for higher approach speeds at the expense of periodic battery maintenance and higher unit complexity.
These criteria are vital when comparing RFID based gate control system options, balancing power architecture, operating range, and maintenance requirements for specific deployment scenarios.
Integration and Signal Calibration
According to field specialists at Smart Choice Gate RepairLong Beach, integrating RFID readers into automatic gate systems requires coordination between signal processing, controller logic, and physical gate actuators:
- Relay and Controller Integration: RFID reader controllers interface with gate operators via standard relay outputs (such as dry contacts) or data protocols connected to a central access management system.
- EPC-Based Identification: Gate systems rely on validated EPC data streams to authenticate incoming credentials against access rules before signaling the gate controller.
- Detection Zone Calibration: Calibrating transmission power (in dBm) and antenna orientation (including elevation and down-tilt) restricts the effective reading zone to the intended approach area. This mitigates cross-reads and false triggers from adjacent lanes or nearby static tags.
- Shielding and Grounding: Appropriate cable shielding and grounding protect data integrity from electrical noise and prevent signal distortion.
Frequently Asked Questions
Can an RFID reader be added to an existing gate opener?

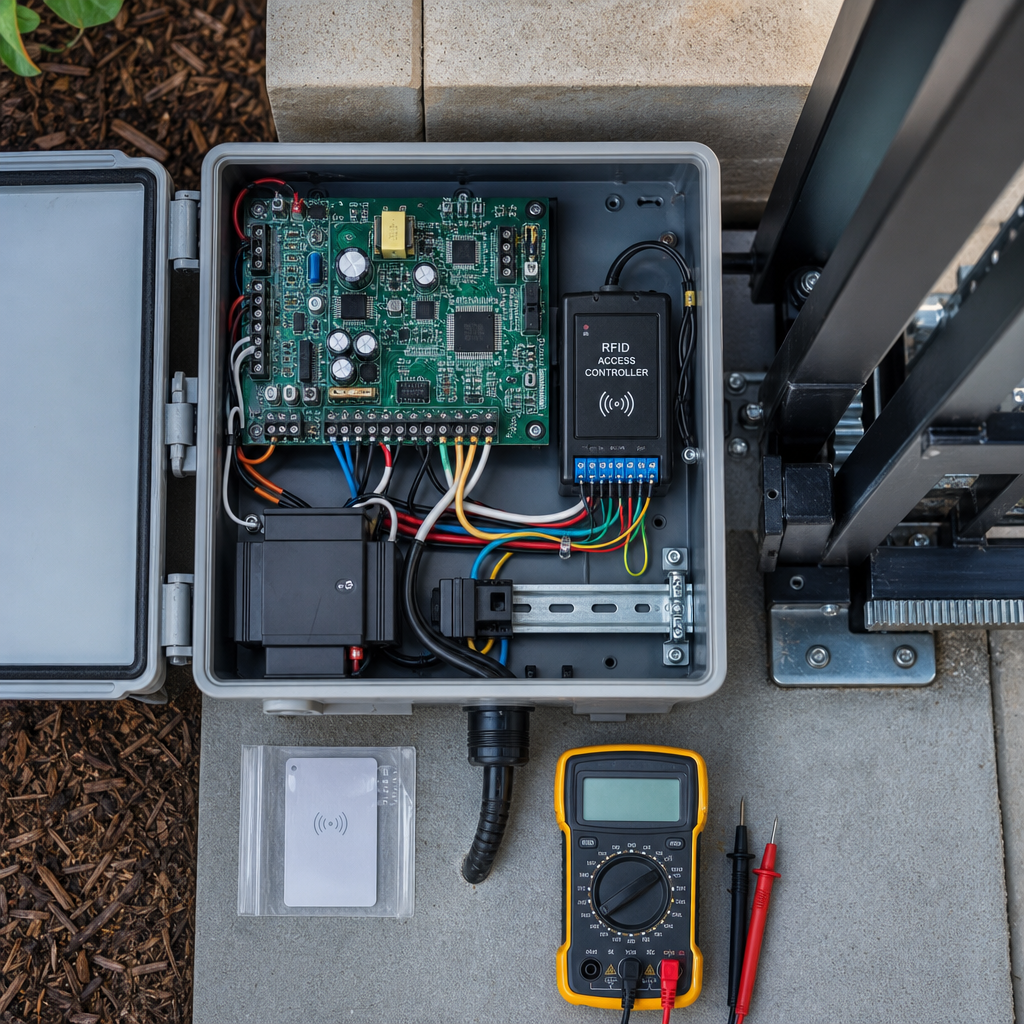

Yes. As installers at Smart Choice Gate RepairLong Beach note, when the existing gate operator provides standard access or open-command input terminals on its logic board, an RFID access controller can be wired directly into the unit.
What prevents unauthorized transfer of an RFID windshield tag?
Many passive vehicle tags use tamper-evident substrates where the antenna structure breaks if the tag is removed, disabling the credential from functioning on an unauthorized vehicle.
What factors determine RFID gate performance?
System performance is primarily evaluated by recognition accuracy, response time, communication stability, and operating distance between the reader antenna and the transponder.[5]
Need comparing rfid based gate control system options?
We’re available now — call for a fast, free estimate.
Sources
- An Action Classification Method for Forklift Monitoring in … – pmc.ncbi.nlm.nih.gov (2021)
- Non-stop Automated Gate System based on a Digital … – academia.edu (2004)
- IoT Based RFID Gate Automation System – ijettjournal.org
- A reliability study of the RFID technology – upload.wikimedia.org
- Performance analysis of the RFID system for optimal design of the … – sciencedirect.com
Related reading: Rfid Automatic Gate Installation Near Me – Call Now-10% Off – Same-Day Service – Free Estimate
Related reading: Hire Rfid Gate Control Installers – Call Now-10% Off – Same-Day Service – Free Estimate
Related reading: Commercial Rfid Gate Reader Installation | Call Now-10% Off | Same-Day Service | Free Estimate
Frequently Asked Questions
How do metallic windshield tints affect passive RFID gate tags?
Metallic or solar-reflective windshield films can attenuate UHF radio signals, significantly decreasing passive tag read range. Technicians at Smart Choice Gate Repair Long Beach resolve this by identifying uncoated glass areas or recommending exterior-mounted headlamp tags.
What is the typical read range difference between passive UHF tags and active RFID transponders?
Passive UHF windshield tags typically offer a targeted read range of 10 to 30 feet, making them ideal for controlled gate approach speeds. Active RFID transponders utilize internal battery power to broadcast signals up to 100 feet or more for rapid, high-speed vehicle clearance.
How do multi-lane properties prevent RFID cross-reads between adjacent gates?
Preventing adjacent lane false triggers requires fine-tuning antenna down-tilt angles and reducing transmission power (dBm) to create tightly defined capture zones. Smart Choice Gate Repair Long Beach also uses directional shielding and controller-level logic to ensure signals register only for the intended vehicle lane.
